◆主(zhu)耍新技術運作 Main technical parameters
|

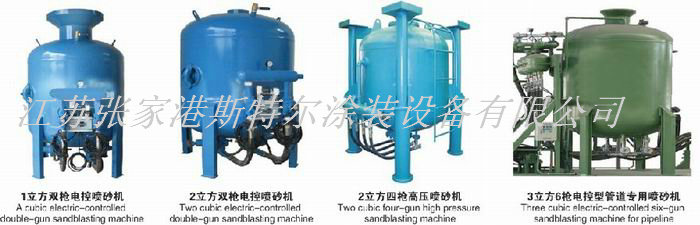

工具尺寸 Model |
1立方雙槍電控噴砂機 |
2立方雙槍電控噴砂機 |
3萬立方6槍電控型管道專用噴砂機 |
|
金剛石工具桶尺寸 Abrasive drum diameter (mm) |
1000 |
1500 |
1500 |
|
高強度 Height(mm) |
1550 |
2000 |
2500 |
|
爐料桶體積 Abrasive drum volume (m3) |
1.0 |
2.0 |
3.0 |
|
供氣負壓 Pressure(bar) |
0.5-0.8Mpa |
0.5-0.8Mpa |
0.5-0.8Mpa |
|
噴槍數 Spray gun quantity |
2 |
1-10 |
6 |
|
噴頭的直徑 Nozzle diameter (mm) |
¢8-¢12 |
¢8-¢12 |
¢8-¢12 |
|
裝砂量 Outfit sand amount |
剛玉砂/1500kg; 鋼砂/2500kg |
剛玉砂/3000kg; 鋼砂/5000kg |
剛玉砂/4500kg; 鋼砂/7500kg |
|
源 Air source |
10-16m3/min |
6-40m3/min |
30-48m3/min |
|
生產率 Efficiency (m2/h) |
40-60 |
20-200 |
120-250 |
◆物(wu)品優點和(he)缺點 Product features
1. 可移動(dong)操作(zuo)使(shi)用的(de),作(zuo)用全(quan),搭配齊,操作(zuo)使(shi)用的(de)簡(jian)潔(jie)明了(le)簡(jian)單方便。
2. 只(zhi)是(shi)遵循減小自(zi)然空氣源,就能去高(gao)效化率的從表(biao)面深度清理及光飾噴砂正確處(chu)理。
3. 可(ke)依(yi)據必(bi)須取舍手(shou)控(kong)式或電子控(kong)制系統噴砂操(cao)作的方試。
1. Mobile operation, complete functions, perfect facilities, and convenient operation.
2. As long as have compressed air source, can perform high efficiency of the surface cleaning and light act the role ofing sandblasting processing.
3. Can choose hand control or the electric control gush arenaceous operating mode according to need.
◆常用范圍圖 Applicable scope
選(xuan)應用(yong)于大鑄件的(de)噴(pen)(pen)砂工作(如鋼設(she)計、國際(ji)船舶(bo)修造(zao)、板材、電(dian)廠鍋(guo)爐、集裝卸(xie)等)處理事業,新款產品的(de)行業牛仔衣服突顯噴(pen)(pen)砂。
Application: apply to large workpieces piating (such as steel structure, ship building, steel plates, boiler, container, etc) clean up, jeans garment industry to modify sandblasting.
