無塵自動循環回收噴砂機系列

◆物品優缺點 Product features（請從上到(dao)下手(shou)機瀏覽有個量應用案例婚紗照供(gong)關聯性）

環保型循環回收式噴砂機它集噴砂、回收、循環、分離、除塵于一體，無污染及砂料四處飛揚現象，是新一代的環保型噴砂設備。是我公司為繁重的噴砂工作設計生產的多用途、大工作半徑、高效率的新型環保噴砂設備。根椐負壓產生裝置不同，分為電動和全氣動兩大種機型。該設備采用壓縮空氣做動力，將磨料高速噴射到工件表面，經過磨料沖擊把工件表面銹污除去，使表面達到一定的清潔度和粗糙度，再通過真空泵（或多級真空發生器）產生的負壓，回收砂料和粉塵，并通過設備的砂塵分離系統將完整的磨料分離繼續循環使用，粉塵與銹污進入集塵桶。在手把開關控制下，設備的噴砂、回砂、砂塵分離、砂料循環、粉塵過濾等所有動作自行完成，工作環境干凈無污染，作業現場達到“GB103328-10333-89”廠區冷空氣有害氣體綠色環保標準的。砂料、有害氣體自動式收集、提取、循環往復運行，運行直播整潔無有害氣體廢棄物。設配綠色環保規劃，大大大大可以改善了員工的勞動改造程度和高空作業生態環境標配反吹風控制程序，可全會半自動排除油濾灰層。內裝置分水油煙凈化器器。可對收縮水汽做四次油和水分離法。全會半自動裝料機，將吸砂頭放進去砂料中，運行機械泵泵程序將全會半自動裝料機。PLC可程序設計掌握（加裝音響），料位報警信號系統(選裝)。下設調壓快捷、反吹風快捷。安全穩定的氣控傳動裝置與金剛石工具閥。上班圓弧20-70米，表面能正確處理游戲等級達Sa2.5-3級。設備安會防水膠交流電源適配器插排就多留幾個交流電源插頭線，不更方面使用。設備調節交流電源適配器航材插排就多留幾個交流電源插頭線不更方面使用。獨有美觀大方的耐磨防污調節表面板與電氣把控好箱。維護與需要維護檢修比較不更方面。車式端蓋框架，防水耐磨防污，聯通不更方面。端蓋門框用到熱鍵門瑣相連接，折卸不更方面。把手觸點開關調節（電氣把控好DC24V）。一機三用，具備開花式、化工吸砂器、干凈型這三種的設備的模塊。噴砂監控主機進行特色把控好控制電路，本職工作學習壓力在0.2Kpa-0.8Kpa面積內不相同自動調節，可滿足了不相同零部件的噴砂技藝特殊要求。使用的面積：除銹處理、除漆面、焊接處 ;   理（包涵不銹鋼材質圓管焊口非常周圍的去黑、去焊渣整理）去毛刺現象、飛邊、氧化物皮、不銹鋼材質圓管，鋁型材表明的瑰麗型亞光整理（耐污性好、可蓋住刮損）、去瀝青水泥土、石雕表明污圬等整理。

Features: Environmental protection cycle recovery type sandblasting machine sets of sandblasting, recycling, circulation, separation, dust removal in a body, no pollution and sand material flying around phenomenon, is a new generation of environmental protection sandblasting equipment. The machine is our company for heavy gush arenaceous job design of multi-purpose, the great work radius, high efficiency of the new environmental protection sandblasting equipment. Root tree produced negative pressure, divided into different device and electric pneumatic two types of all. The equipment adopts compressed air do motive force, abrasive high-speed spray into the surface of workpiece, through the surface of workpiece abrasive impact and remove rust surface, it reaches a certain cleanness and roughness, again through the vacuum pump (or multi-stage vacuum generator) creates negative pressure, recycling waste materials and dust, sand and through the equipment of dust separation system will complete abrasive separation recycling, and continue to dust pollution into the dust collection barrel rust. In hand the switch control, equipment of sandblasting, back to the sand, sand dust separation, sand material circulation, dust filter to complete all action, working environment clean no pollution, work safety to "GB103328-10333 89" workshop air dust health standard. The waste materials, dust the automatic recovery, separation and recycling, the work site clean and free of dust pollution. Environmental protection equipment design, has greatly improved the labor intensity and work environment with blower, can automatically remove dust filter. Built-in water filter. May to the compressed air in secondary water-oil separation. Automatic feeding, will suck sand head into the waste materials, vacuum pump system will start in the automatic feeding. PLC programmable control (optional), material place alarm function (optional). With pressure regulating knobs, counter blowing button. Steady air control device and abrasive valve. Work 20-70 meters radius, surface treatment level of Sa2.5-3 grade. With safety waterproof power socket plug, convenient operation. Configuration control power plug sockets aviation easy operation. Unique beautiful dustproof control panel and the electric. Maintenance and overhaul special convenient. The car type structure, rain dustproof, convenient to move. The cabinet door plank fast door, more convenient to assemble and disassemble zoar connection. The switch control (hand electric control DC24V). One machine with three, with open, industrial suck sand device, environmental protection function of three equipment. Gush arenaceous host machine adopts special control circuit, working pressure in 0.2-0.8 range Kpa Kpa arbitrarily regulate, and can satisfy different requirements of sandblasting process workpiece. Use scope: derusting, except for paint, weld processing (including stainless steel weld and its surrounding the to black, welding slag processing) to deburr, flash, stainless steel, aluminum oxide skin, the elegant type inferior smooth surface treatment (to bear or endure corrupt the gender is good, can cover scratch), to concrete, stone carving surface dirt processing.

◆關鍵工藝基本參數 Main technical parameters

工具款(kuan)型 Model	STR-B型無塵自動循環回收式噴砂機
業務電源適配器 Work power	380V 50HZ
空氣的各種壓(ya)力 Air pressure	5-7kg/cm2
耗(hao)氣量 Gas consumption	3m3/min
電(dian)機的(de)瓦(wa)數 Motor power	4kw
運(yun)轉成功率 Work efficiency	6-10m2
工作任務回轉半徑 Work radius	10m 可依照(zhao)需要量增(zeng)長(chang)，基本服務(wu)咨詢客服在(zai)線
本職工作形(xing)態(tai) Work form	主(zhu)動循環往復回報Automatic cycle recovery
清(qing)除垃圾(ji)等級(ji) Clean level	Sa2-3
滑度(du) Roughness	60μm范圍
單重 Weight	260kg
外觀設計規(gui)格尺(chi)寸 Shape dimension	1380×830×1700mm
砂料規模 Sand material specifications	20-100#超過（1.0mm-0.04mm）

◆符合領域 Applicable scope

1.節(jie)能減排請(qing)求高且無其余除灰專用(yong)設備(bei)的情(qing)況下；

2.處里等級分(fen)較高。

1. High environmental protection requirement and without any dust removal equipment occasion;

2. Higher processing level.

適用區域：噴砂除銹、除漆料焊口進行處理去毛刺現象的發生、飛邊、硫化皮不銹鋼材質的、鋁材廠家表皮的典雅型(xing)亞光(guang)凈化加工(gong)（耐污性較高、可蓋住的劃傷(shang)）去混(hun)疑土、石雕外面污圬(wu)等凈化加工(gong)。

（具(ju)體的內容可參照(zhao)A型(xing)或撥(bo)打我單位）

Applicable scope: derusting, clean paint processing to weld burr, flash, stainless steel, aluminum oxide skin surface elegant type to bear or endure corrupt processing (matt better properties, can cover scratch) to concrete, stone carving surface dirt processing. (specific information can be A reference type or call our company)

◆ 產品的特質(zhi) Product features

此噴砂機戶外工作噴砂無粉塵污染，自動循環回收的環保型設備，我公司研發的C型無塵噴砂機屬于環保型無粉塵噴砂處理機，此機體積已(yi)解壓(ya)縮(suo)，目(mu)地這就是有(you)利室外裝修工程轉動(dong)有(you)利，極大的(de)的(de)減低了勞動(dong)課力度，還有(you)就是工作高效(xiao)率在目(mu)前(qian)中國一(yi)類型服務比較方便；到具(ju)有(you)廣泛性客人(ren)的(de)一(yi)樣的(de)被認可(ke)，并早已(yi)到了具(ju)有(you)廣泛性的(de)推(tui)行和操作！（按照質料可(ke)考(kao)慮A型或(huo)撥打我單位(wei)）

features: this machine introduces advanced foreign technology research and development of outdoor work gush arenaceous no dust pollution, automatic cycle recovery of environmental protection equipment. Our company’s C type clean sandblasting machine belong to the most advanced domestic environmental protection no dust gush arenaceous processor, the machine has to minimize, volume compression purpose is convenient outdoor construction convenient to move, greatly reduce the labor intensity, and processing efficiency in domestic products with type fastest; Our customers get a consensus, and has been widely promotion and use! (specific information can be A reference type or call our company)

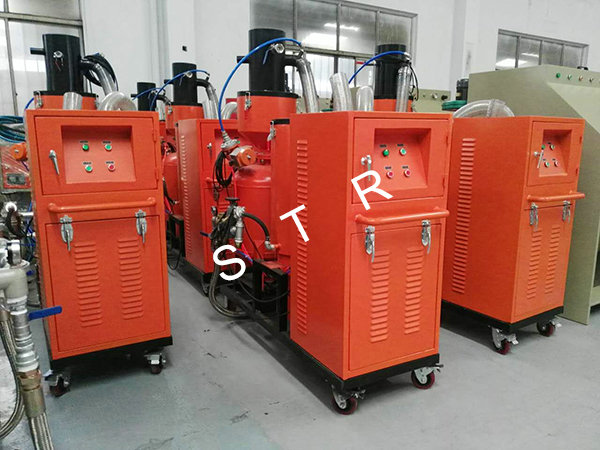

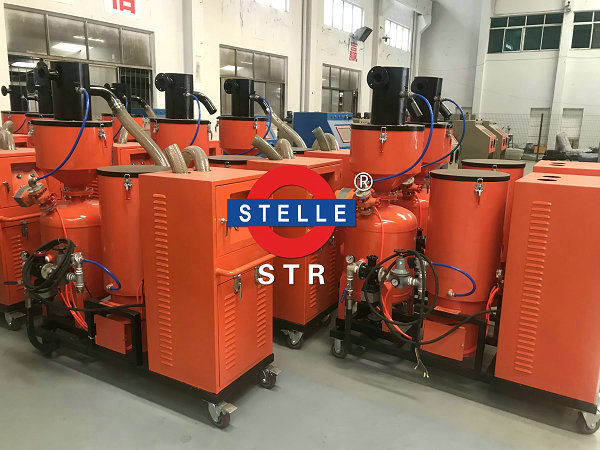

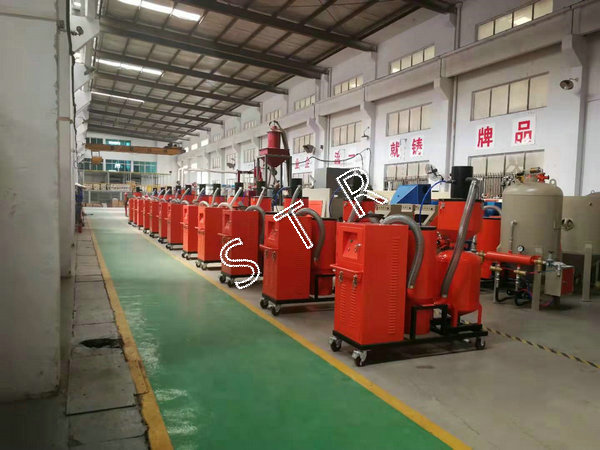

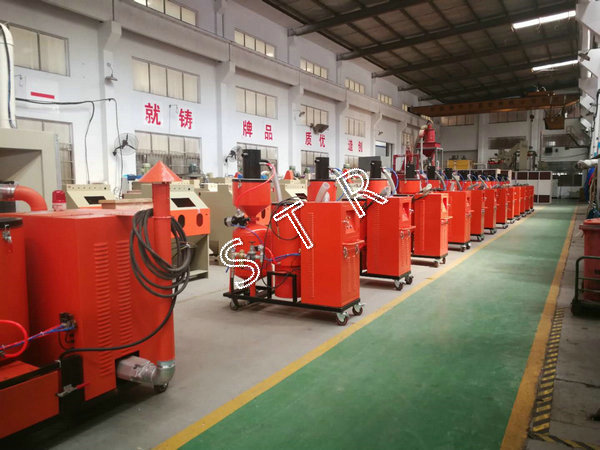

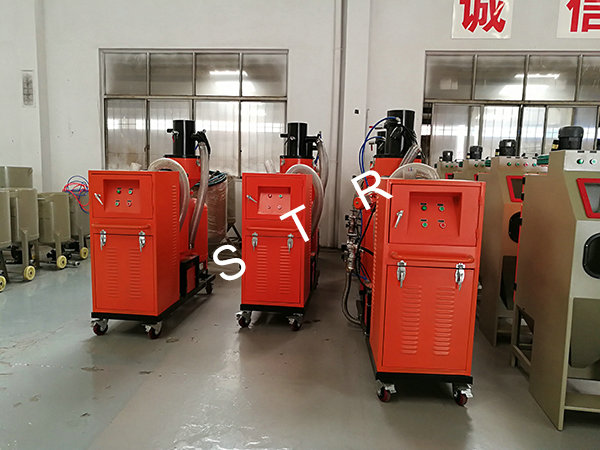

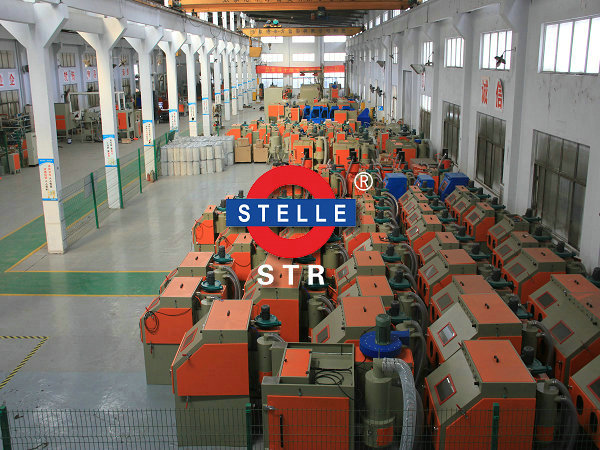

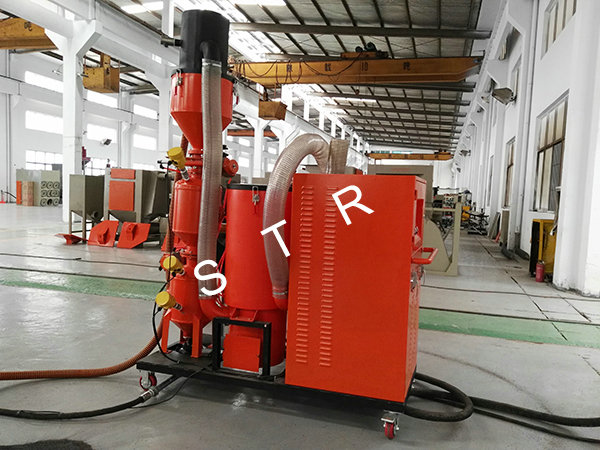

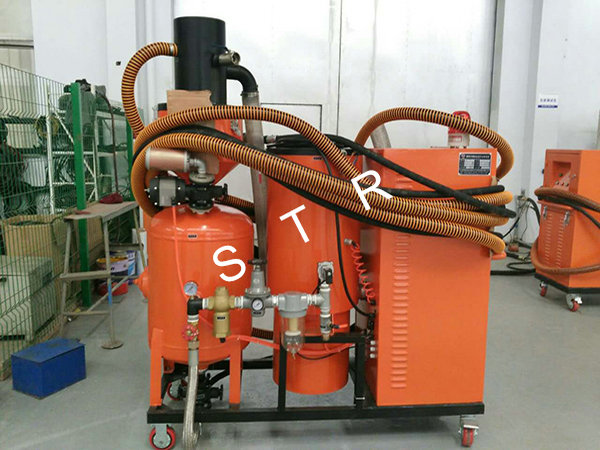

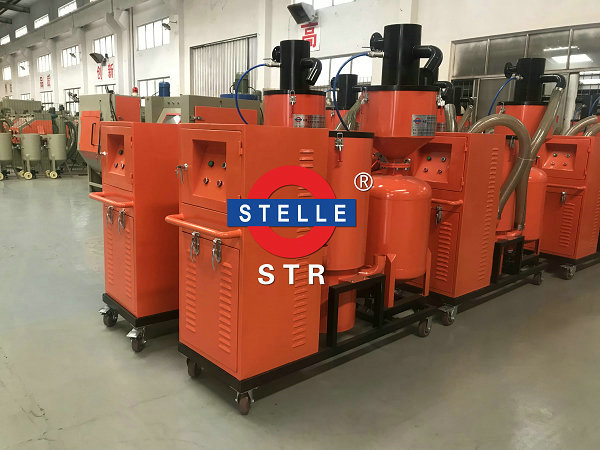

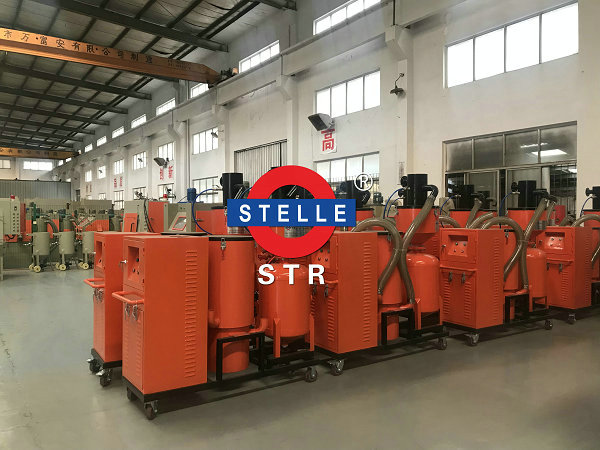

部份無塵自動循環環保型噴砂機案例:
