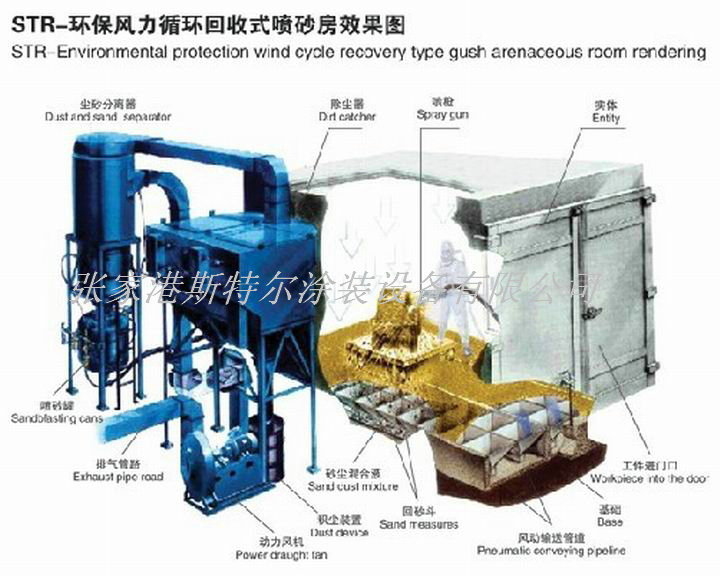

STR-環保風力循環回收式噴砂房效果圖

STR-Environmental protection wind cycle recovery sandblast room designsketch

◆噴砂（丸）房的組合成體系

Composition of the sandblasting (shot) room system

1、運行室  Studio

2、噴砂設備  Sandblasting  system

3、研磨材料的回收利用系統性  Abrasive recycle system

4、降塵系統化  Dust removal system

5、鋼件運輸軟件  Workpiece conveying system

6、管控系統的  Control system

7、照明燈具操作系統  Lighting system

 ◆常用時(shi)間范圍 Applicable scope

中大(da)型鑄件鍛件、激光焊(han)接(jie)鋼結(jie)構建筑(zhu)類型、電(dian)抗器汽車油箱、工作(zuo)機械(xie)設備制造(zao)(zao)裝備、摩托車、工業(ye)鍋爐燃(ran)燒生產制造(zao)(zao)、化工環保機械(xie)設備制造(zao)(zao)裝備、船(chuan)只修造(zao)(zao)等噴砂(sha)去銹。

Large castings and forgings welding steel structure, transformer oil tank, engineering machinery, locomotives, boiler manufacturing, chemical machinery, ship building blast cleaned, etc.

 ◆品牌特性 Product features

噴砂房是我公司在蜂窩地板技術的基礎上，自行開發、設計的環保型蜂窩式噴砂（丸）房，可按客戶的產品特性、噴砂要求等設計制作。蜂窩地板噴砂房是利用風機的風力為動力，將磨料通過回料管道吸送到旋風分離器中進行分離，最后進入噴砂系統循環利用。

Sandblasting room  is our company in introducing foreign advanced cell technology based on the floor, , the development, the design of the environmental protection cellular gush arenaceous (shot) room by ourselves, according to customers' product characteristics, sandblasting design requirements, etc. Cellular floor gush arenaceous room is the wind power by fan for abrasive materials, will back through the pipe to cyclone separator suction of separation and finally into gush arenaceous system recycling.

兼具下面優缺點：

1、省去了常規噴砂房砂料輸送煤循環系統的螺旋輸送機，斗式提升機以及地下工程，不需建造地坑，節約了地基施工費用，大大節約了工程成本；

2、金(jin)剛石(shi)工(gong)具收(shou)購(gou)率高(gao)，能夠清換金(jin)剛石(shi)工(gong)具；

3、具體電力電氣(qi)元器(qi)件封(feng)裝(zhuang)均運用德國商(shang)品，兼備的性(xing)能穩定的，衛(wei)生不靠譜，的使用蓄電量長，維護簡(jian)單(dan)的；

4、噴砂房室體內有高清晰的能見度，室體自然補風，節約能源消耗；

5、遠程服務(wu)器選(xuan)擇雙(shuang)極濾塵(chen)，一是級選(xuan)擇漩(xuan)風(feng)區分器，二是級用(yong)凈水器濾芯式濾塵(chen)系統(tong)軟件，其總濾塵(chen)效應大(da)約99.99%以上的；

6、在噴砂房正面房頂上部，配有“聲光報警系統”，在噴砂房內，配有急停呼叫按鈕；

7、各機(ji)裝置電機(ji)調(diao)節裝置主要采用(yong)互鎖調(diao)節，當中間一(yi)機(ji)裝置發(fa)生告(gao)警時，重要性機(ji)裝置均(jun)暫停崗(gang)位，噴槍暫停發(fa)射；

8、房體用鋼(gang)結(jie)構建筑修(xiu)飾來設計(ji)，外部簡練、美(mei)化、標準，隔(ge)音降(jiang)噪成果好，且(qie)怎么安裝方便快捷。

Advantages

1. Omitted conventional Sandblasting room sand conveying coal circulation system, screw conveyor a pattern lift machine and underground project, no need to build the pit and save foundation pit construction cost, greatly reduce the project cost;

2. high  abrasive recycle efficiency, easy to change abrasive;

3. The main electrical components are imported products, have the stable performance, safety and reliability, long life, easy maintenance;

4. Sandblasting room inside has high-resolution visibility, Chambers fill the wind, save energy natural consumption;

5. This machine use double levels of dust removing, the first level is the cyclone separator, the second type is filter dust removal system. Its total removal efficiency may reach above 99.99%;

6. In sandblasting room roof, equipped with a "positive upper sound-light alarm system", in the room, sandblasting with abrupt stop call button;

7. The electric control system uses interlock control, while one system malfunction, related system are to stop working, stop spraying gun;

8. Building decoration design room body appearance, simple , beautiful, standard, good noise reduction result  and convenient installation.
