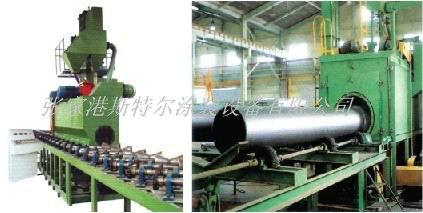

螺旋(xuan)鋼(gang)管(guan)縱向(xiang)壁(bi)拋噴(pen)丸清掃(sao)機
◆產品設備特色 Product features
無縫(feng)焊(han)管(guan)表面上(shang)拋丸清掃機適于(yu)于(yu)大(da)、中(zhong)、小行無縫(feng)焊(han)管(guan)、設備(bei)的表面上(shang)治(zhi)療和淬煉、鋁件(jian)半(ban)電腦自(zi)動(dong)三(san)維旋轉、半(ban)電腦自(zi)動(dong)行進(jin)，鋁件(jian)的行駛運行速度(du)可(ke)表明鋁件(jian)的讓(rang)去即使懂(dong)得調整，可(ke)結構設計成單管(guan)、雙管(guan)、3管(guan)、4管(guan)、突變(bian)后可(ke)進(jin)行清理(li)大(da)一些(xie)的PE管(guan)件(jian)、液化氣儲罐(guan)，有機化工運輸罐(guan)企業公(gong)司小車等。
The outer steel wall of shot cleaning machine is used in large, medium and small steel tube, the cylinder's surface treatment and strengthening, workpiece rotating, automatic walk, the operation speed according to the requirements can be adjusted, can design the single pipe, double tube, 3, 4 pipe, tube variation can be clean up after large-scale pipe, oil tank, chemical storage tank railway vehicles and so on.
◆重要能力參數表 Main technical parameters
|
進行清理無縫管長寬高 Clean steel pipe size |
Φ300×5000mm |
拋丸器量(liang) The number of shot peening machie |
2臺 |
|
輥道電腦運行速率 Roller speed |
1-5m/min |
拋丸(wan)器電機功率 Shot peening machie power |
11kw×2 |
|
彈丸(wan)截(jie)面積(ji) Projectile diameter |
Φ0.8-Φ1.2mm |
拋丸(wan)量 The number of shot peening |
250kg/min×2 |
|
首度彈丸放(fang)入量(liang) The first projectile into amount |
800kg |
離心葉輪內直(zhi)徑 Impellerdiameter |
Φ250mm |
|
進(出)料輥道總長 Length of material into(out) the roller |
5000mm |
扇葉轉動速度 Impeller speed |
2930r/min |
|
輥距 Roller dimension |
400mm |
拋射速度(du)快 Aerosol propellant speed |
60-70m/s |
|
乘載承重 Load weight |
30kg/m |
發(fa)展機(ji)公率 Hoist machine power |
3kw |
|
擺線(xian)降速機輸出 Cycloidal reducer power |
2.2kw |
上升量 Ascension of |
30/h |
|
過濾(lv)裝置布袋(dai)條數 The number of filter bag |
36條 |
破乳量 Separation of |
30t/h |
|
過濾器布袋規格為 Specification of filter bag |
Φ120×5000mm |
橫向聯系雙(shuang)螺旋功效Longitudinal spiral power |
3kw |
|
補(bu)救(jiu)風口(kou)尺寸(cun) Processing air volume |
9800m3/h |
輸送管量 Throughput |
30t/h |
|
除灰送(song)風機電功率 Dust electromotor power |
5.5kw |
總功效(xiao) Total power |
37kw作用 |
|
振打交(jiao)流電動機效率 Vibration motor power |
0.75kw |
儀器(qi)形壯尺寸大小 Shape dimension |
15000×4600×5000mm |
